Inverter

Description

*Compatibility: Suitable for Power Station E-Bikes (Basalt/Basalt ST/Scoria/Obsidian)

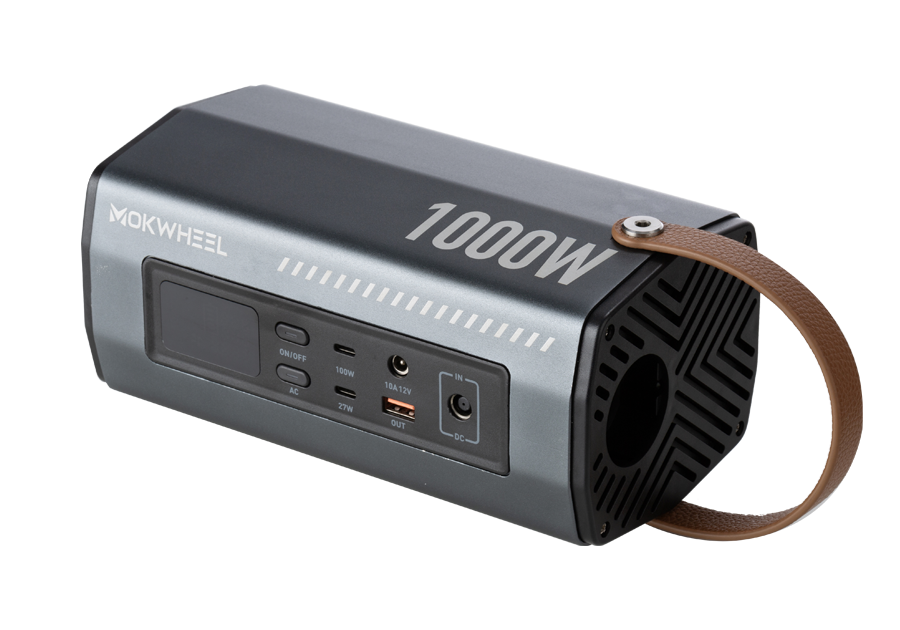

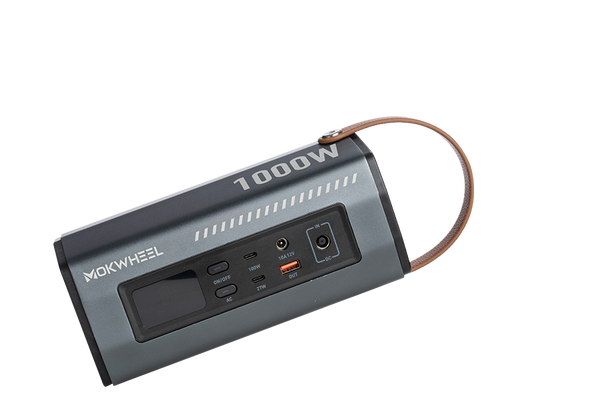

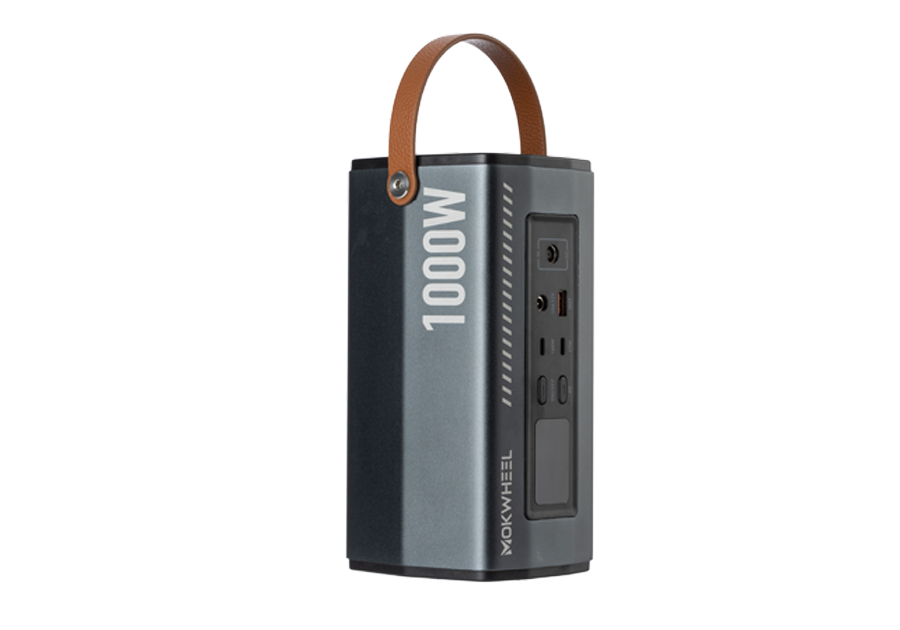

Aluminum alloy housing and LED: The 1000W modified sine wave inverter features an aluminum alloy casing to resist heat, cold, and corrosion, making it rust-resistant. The LED indicator light allows users to monitor the inverter's operation at a glance.

This modified sine wave inverter is ideal for Mokwheel e-bikes, mobile phones, laptops, electric lights, digital cameras, breast pumps, TVs, power tools, microwaves, etc. It is very convenient for use with e-bikes and home power supply.

There are six main protections for the inverter: short-circuit protection, over-temperature protection, overload protection, under-voltage protection, over-voltage protection, and reverse polarity protection.

With the help of LED indicators, users can directly observe the normal operation of the device: charging, full, fault, power. An independent power switch makes the inverter easy to control.

A built-in quiet fan adjusts its speed effectively according to load and temperature. The fan grill prevents small animals from entering the machine.

Type-C1 output parameters: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, 100W Max.

Type-C2 output parameters: 5V/3A, 9V/3A, 12V/2.45A, 27W Max.

USB-A output parameters: 5V/3A, 9V/2A, 12V/1.5A, 18W Max.

DC5521 output parameters: 12V/10A.

DC7909 input charging: 18–36 V/6A (solar charging with same connector).

External power supply, airline plug (custom input connector): 36 V/30 A.

AC output: total power 1000W (peak 1000W) (Europe).

Packing List

One 1000W inverter

750 mm long adapter cable for airline plug (black double plug)

User manual, instruction manual, warranty card

Basic Specifications

Net weight: approx. 1.6 kg

Product size: L 214 mm x W 116.5 mm x H 109.6 mm
