New Owner's Guide

Thank you for choosing Mokwheel bikes! First, watch our safety video for some tips on riding safely. Then click on one of the sections below to learn more about how to use and enjoy your bike! Please select a model from the list below:
Basalt 2.0 Basalt ST 2.0 Obsidian Obsidian ST

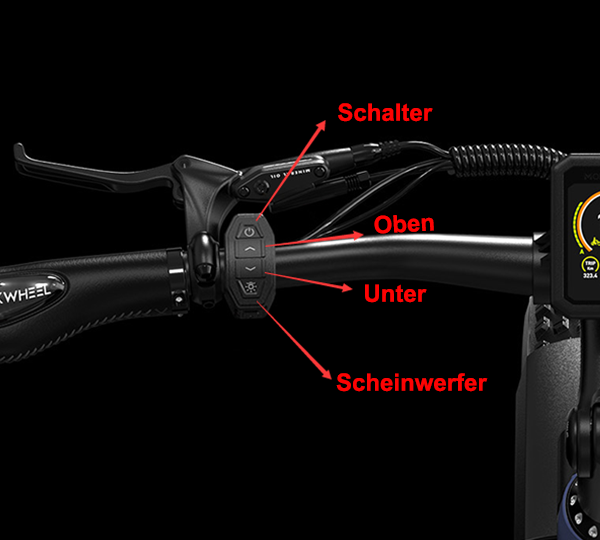

Key Function

The positions and combinations of the buttons are as follows:

Power On/Off

Hold the button to turn the e-bike on or off.

Function

Press “” to increase the PAS level, and press “” to decrease the PAS level.

Headlight

Press the headlight button to turn on the headlight when the e-bike is powered on. Press the button again to turn off the headlight.

Settings

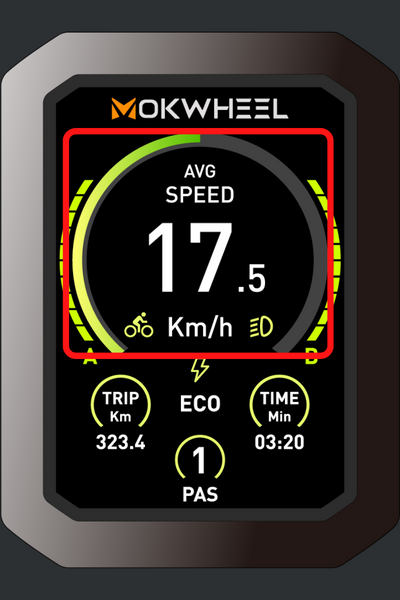

Hold the + buttons for 5 seconds to access the secondary menu display, then return to the primary menu mode. a. Speed display: (Average speed AVG, Maximum speed MAX) b. Odometer display (ODO) and current trip distance (TRIP)
LCD Odometer Display


Display Functions: Speed, pedal-assist level, battery power, total mileage, trip distance, trip time, error code. Description of display contents: All contents are shown (appear within 1 second after turning on the e-bike). Hold the MODE button to power on the bike.

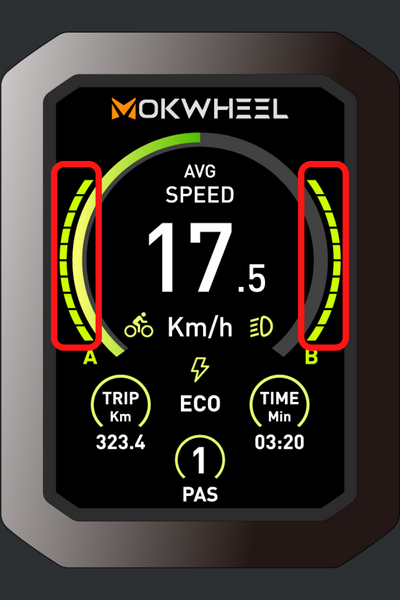

Battery Charge Indicator A/B: Single and Dual Battery Level Display

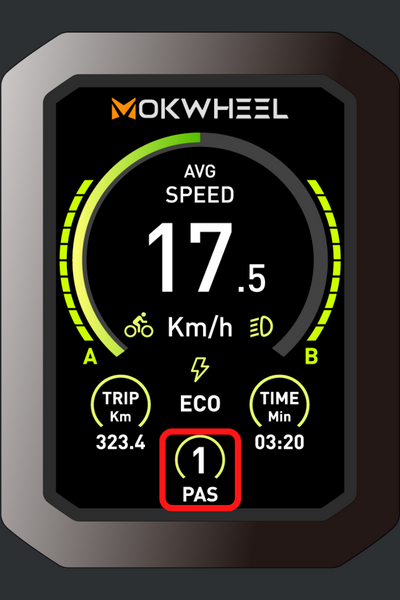

Pedal-Assist System: 0–5 Gear Levels. Generally, the third and fifth levels are recommended.

Speed Display: Shows the current speed. When the speed bar exceeds half, the bike switches from Eco mode to Power mode.

E-Bike Gear Mode: Walk Assist Mode (hold the down button to switch to 6 km/h walking mode), Travel Mode (hold the button for 2 seconds to switch to full electric travel mode).

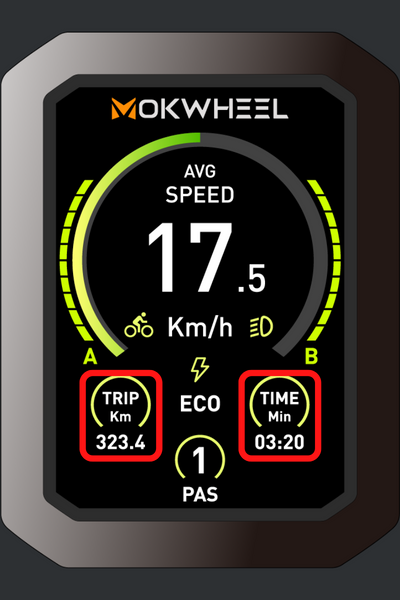

Ride Information Display: Shows trip distance (TRIP) and ride time (TIME).

Multifunction Display: Shows front headlight and rear taillight status; displays Type-C output.

Battery Charge Indicator A/B: Single and Dual Battery Level Display

Pedal-Assist System: 0–5 Gear Levels. Generally, the third and fifth levels are recommended.

Speed Display: Shows the current speed. When the speed bar exceeds half, the bike switches from Eco mode to Power mode.

E-Bike Gear Mode: Walk Assist Mode (hold the down button to switch to 6 km/h walking mode), Travel Mode (hold the button for 2 seconds to switch to full electric travel mode).

Ride Information Display: Shows trip distance (TRIP) and ride time (TIME).

Multifunction Display: Shows front headlight and rear taillight status; displays Type-C output.

Parameter Settings

Press and hold both + to enter the parameter settings page.
Under the "Settings" menu, short press or to adjust the value/unit. After adjustment, the parameter will blink.

After confirming the set parameter:
1. Press once to select the current setting to set the parameter. After setting, press once to confirm the setting. It will then automatically return to the previous screen.

2. Press to exit and save the parameter settings. If not pressed, the settings will automatically save and exit after 10 seconds.

Note: Some displayed content on the MokWheel product you receive may differ from the manual due to product updates, but this will not affect your use of the product.

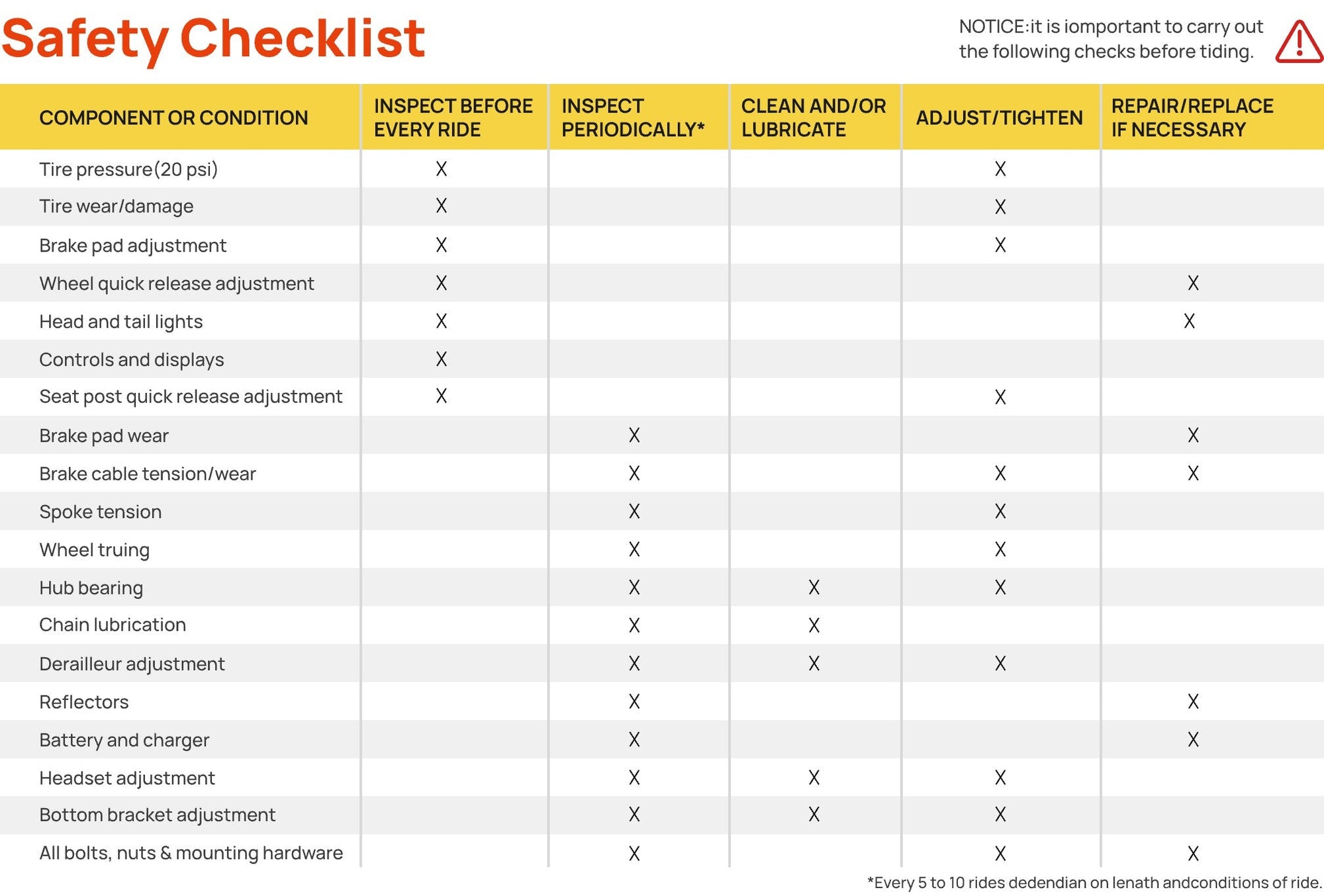

Safety Checklist

NOTE: Before each ride, it is important to perform the following safety checks.
